PDD75 Series Structural Visible Frame Aluminium Curtain Wall, Glazing Aluminum Curtain Wall Facade
structural visible Frame Aluminium Curtain Wall, Glazing Aluminum Curtain Wall Facade

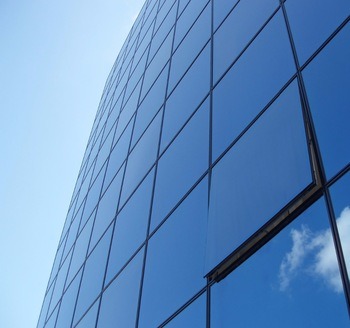

Open Frame Glass Curtain Wall:
The open frame glass curtain wall is not only widely used, stable and reliable in performance, but also the earliest in application, because the open frame glass curtain wall is derived from the glass window in form and is easy to be accepted by people. Simple construction and traditional form.
In addition, open frame glass curtain wall not only participates in indoor and outdoor heat transfer, but also aluminum alloy frame participates in indoor and outdoor heat transfer. In a curtain wall unit, the glass area far exceeds the area of aluminum alloy frame, so the thermal performance of glass plays a leading role in open frame glass curtain wall.
The glass of the exposed frame glass curtain wall is embedded in the aluminum frame to form the curtain wall components with aluminum frames on four sides. The curtain wall components are embedded on the beams and columns to form the facade with exposed beams and columns and obvious aluminum frame division. Open frame glass curtain wall is the most traditional form, which is widely used and has reliable working performance. Compared with the hidden frame glass curtain wall, it is easier to meet the requirements of construction technology level
Features:
1. Light Weight
Under the same area comparison, the quality of glass curtain wall is about 1 / 10 ~ 1 / 12 of that of painted brick wall, 1 / 15 of that of marble and granite facing wet construction wall, and 1 / 5 ~ 1 / 7 of that of concrete hanging slab. In general buildings, the quality of the internal and external walls is about 1 / 4 ~ 1 / 5 of the total weight of the building. The curtain wall can greatly reduce the weight of the building, so as to reduce the cost of foundation engineering.
2. Flexible design
With good artistic effect, architects can design various shapes according to their own needs, present different colors, coordinate with the surrounding environment, cooperate with lighting, etc., so as to integrate the building with nature and reduce the pressure of high-rise buildings.
3. Strong earthquake resistance
Flexible design, strong wind resistance and earthquake resistance, is the best choice for high buildings.
4. Systematic construction
Systematic construction is easier to control the construction period, and time-consuming is shorter.
4. Modernization
It can improve the novelty and technology of the building, such as photovoltaic energy-saving curtain wall, double-layer ventilation ventilation curtain wall and intelligent technology supporting design.
5. Easy to update and maintain
Because it is built in the peripheral structure of the building, it is convenient to repair or update it.
| Performance | Parameter | National Standard |
| Wind Load Resistance | 4.5<=p3>=5.0 | level 8 |
| Air Tightness | 2.5<=q1<=2.0 | level 5 |
| Water Tightness | 350<=△p>=700 | level 6 |
| Thermal Insulation | 3.0>k>=2.5 | level 6 |
| Sound Insulation | 35=<Rw+Ctr<40 | level 5 |
| Name/Model: | PDD75 Series Structural Visible Frame Aluminium Curtain Wall, Glazing Aluminum Curtain Wall Facade | | Profiles: | 6063-T5 high quality aluminium extrusion profiles | | Glass Choice: | Low-e; relective;Frosted; tinted; clear tempered glazing | | Glass Choice: | 5mm; 6mm,12mm single tempered glazing | | 5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass | | 5+6A+5+6A+5mm triple glass | | 5+0.76+5mm;6+2.28+6mm Laminated | | other glass type you need | | Color: | matt black;white;ultra silver;clear anodized;nature clean aluminium | | Any color available | | Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium) | | white or other color | | Hardware :
| China Top brand: MACO
| | Frame Surface Finish: | Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing; | | Flyscreen: | Stainless steel security mesh; Aluminium security mesh; Fiberglass flys | | Guarantee : | Years | | Security: | Crimsafe mesh ; Grille available | | Application: | Building(office/hotel/apartment) | | |
* The aluminum frame is not exposed
* Aluminum frame is visible
KLUK Aluminum Windows and Doors System Co.,Ltd is high-end brands growth in Guangdong Yonglong Aluminum.Guangdong Yonglong Aluminum Co.,Ltd is located in Sanshui District,Foshan City,which was established in 1997.Yonglong is a large comprehensive profile enterprise with research,development,manufacture and sales of aluminum alloy profiles.
After years of development and precipitation, the group's business is mainly divided into four majors:'HONG YING' aluminum brand,'KLUK' high-end aluminum windows and doors system brand,building aluminum formwork and industrial aluminum profiles.We have passed ISO9001:2015 quality management system certification,ISO14001:2015 environmental management system certification.With abundant comprehensive strength and high quality service,the brand HONG YING has been well sold all over the country and exported to many countries and regions including South Asia,Europe,South America and so on.
