80 Series Santa Carolina Thermal Break Aluminum Inner Open Window
Specification:
Product characteristics
The fixed pressing line and the shape of the window sash are designed with Gothic arc, showing the overall perfection and fullness; The light shines on the thick pressing line through the wide glass hollow, creating a unique sense of slender and solemn ceremony; It symbolizes the solemn and persistent guard spirit of the royal guards. In the cold winter and hot summer, they always stick to their posts and protect the peace and temperature of their homes.
Design highlights

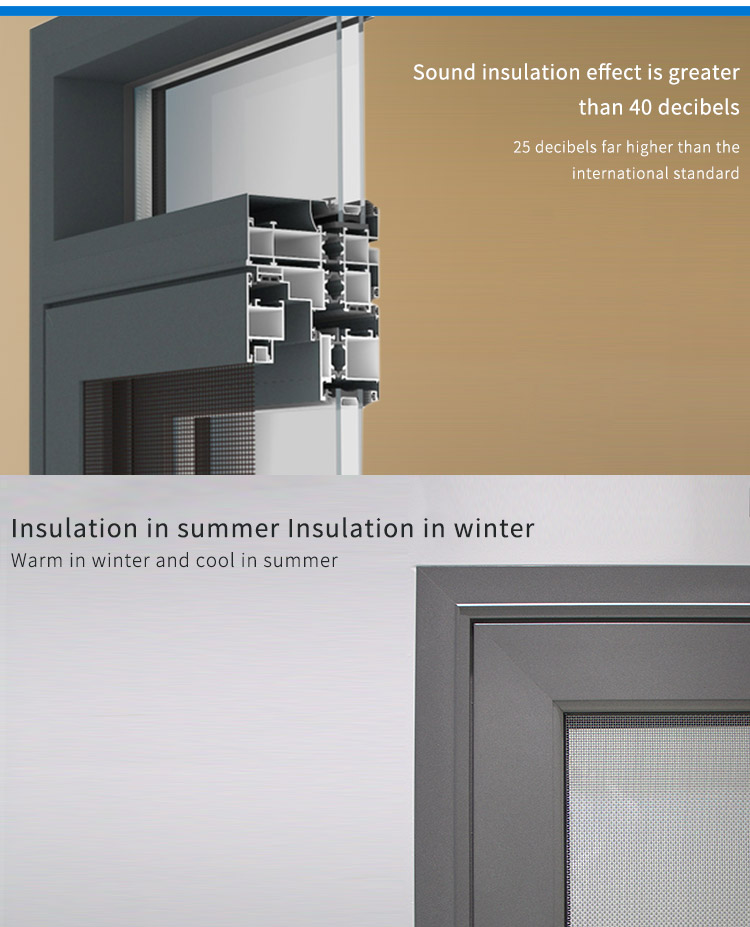

Five cavity double broken bridge thermal insulation structure
Design of multi-layer sealing and drainage
Load type transmission hardware system
Gauze fan with metal angle protection
Ultra new national standard profile wall thickness
Function matching
Design insulation performance: 1.6w/m2 · K (Grade 6)
Designed wind pressure resistance: up to 5.0p3 (Level 9)
Design air tightness performance: Grade 8
Design water tightness: can exceed 700 △ P (Level 6)
Design sound insulation performance: up to 42db (Class V)
Product feature
Hardware configuration: standard imported hardware accessories
Supporting window type: external opening, external hanging and swing door

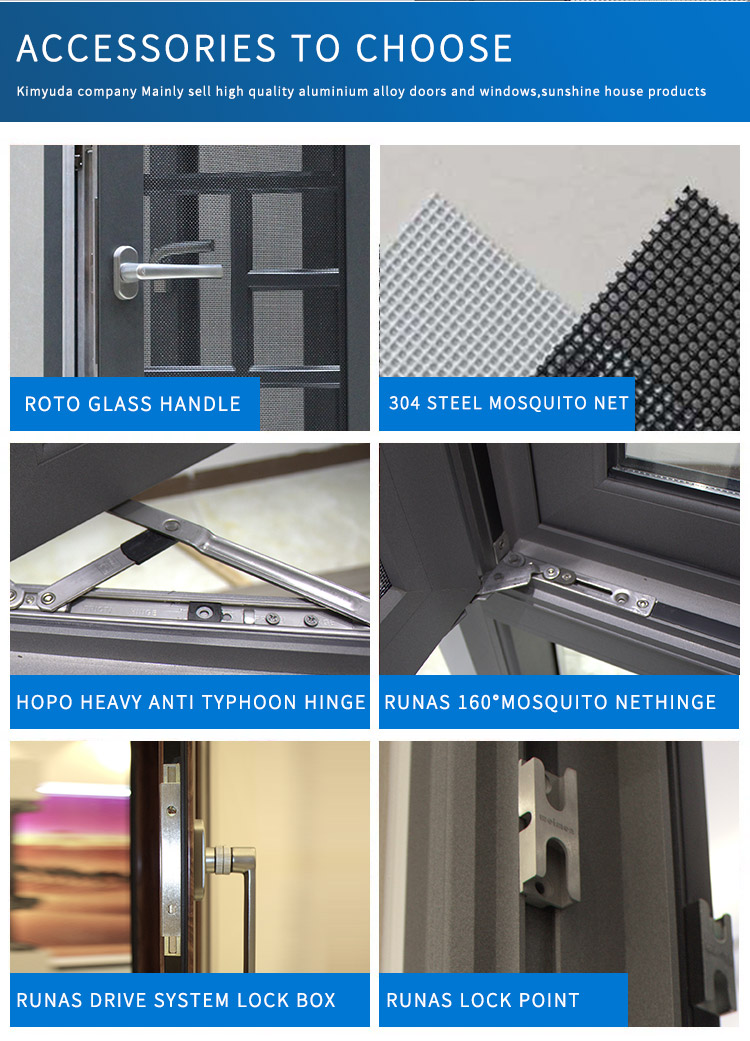

Supporting configuration: optional window cover line, Low-E glass, shutter, protective grid, fresh air system, 5-point lock system
| Performance | Parameter | National Standard |
| Wind Load Resistance | 4.5<=p3>=5.0 | level 8 |
| Air Tightness | q1<=0.5 | level 8 |
| Water Tightness | 250<=△p>=350 | level 6 |
| Thermal Insulation | 2.5<=k<=3.0 | level 5 |
| Sound Insulation | 30=<Rw+Ctr<35 | level 5 |

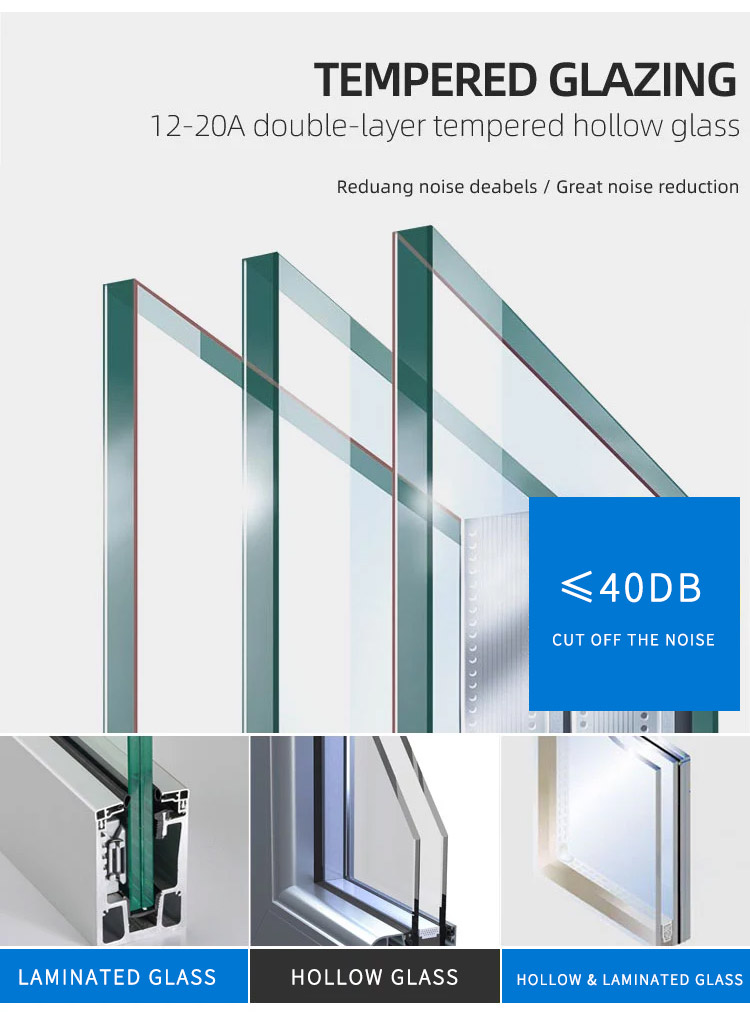

| Name/Model: | 80 Series Santa Carolina Thermal Break Aluminum Inner Open Window | | Profiles: | 6063-T5 high quality aluminium extrusion profiles | | Glass Choice: | Low-e; relective;Frosted; tinted; clear tempered glazing | | Glass Choice: | 5mm; 6mm,12mm single tempered glazing | | 5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass | | 5+6A+5+6A+5mm triple glass | | 5+0.76+5mm;6+2.28+6mm Laminated | | other glass type you need | | Color: | matt black;white;ultra silver;clear anodized;nature clean aluminium | | Any color available | | Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium) | | white or other color | Hardware :
| China Top brand: MACO

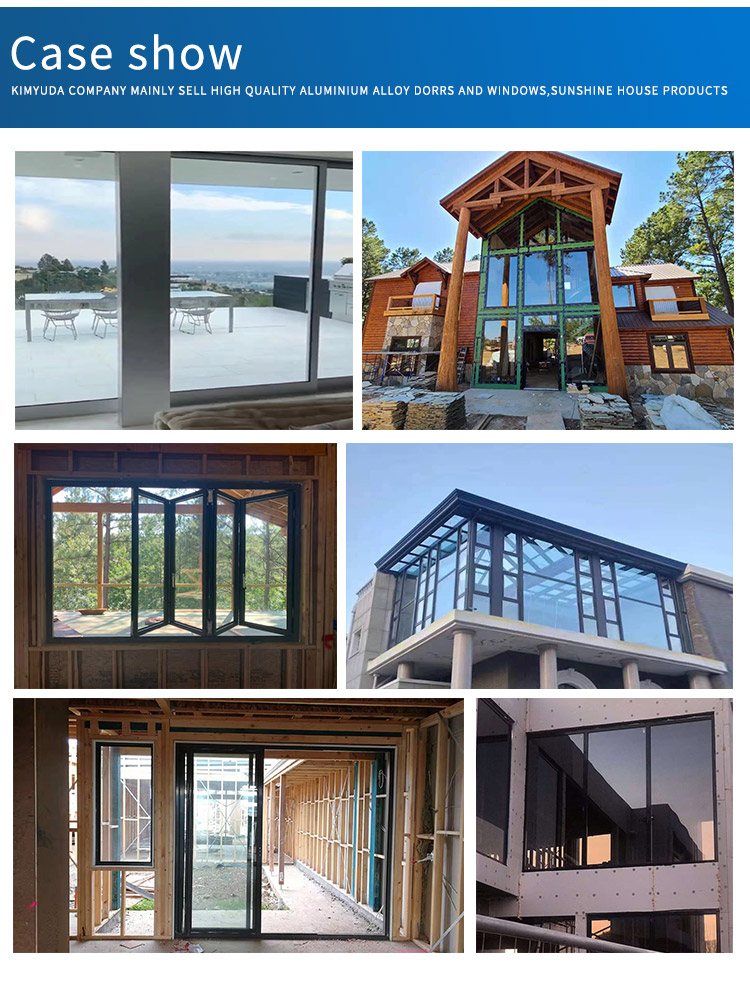

| | Frame Surface Finish: | Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing; | | Flyscreen: | Stainless steel security mesh; Aluminium security mesh; Fiberglass flys | | Guarantee : | Years | | Security: | Crimsafe mesh ; Grille available | | Application: | Building(office/hotel/apartment) | | |
