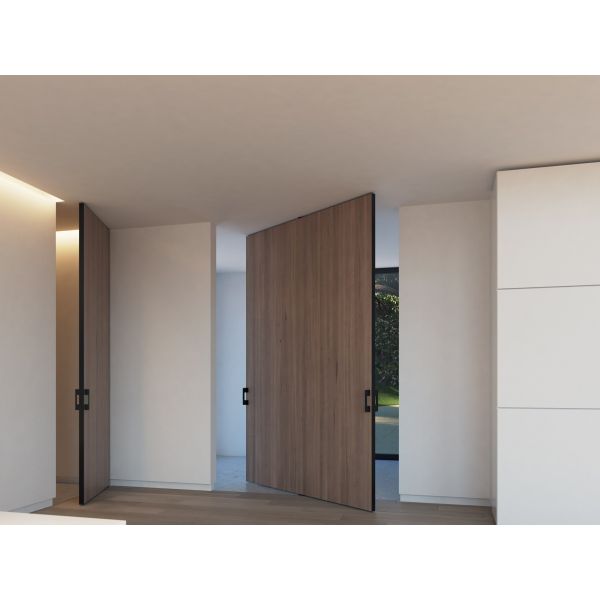

Luxury Villa Aluminum Pivot Doors , Pivoting Walls Environmental Integrated

Guangdong KLUK Aluminum Building Technology Co., Ltd
Contact Now

Luxury Villa Aluminum Pivot Doors , Pivoting Walls Environmental Integrated

  • 1
  • 2

Brand Name : KLUK

Model Number : KPT 9

Certification : ISO9001:2016; ISO14001:2016

Place of Origin : GUANGDONG, CHINA

MOQ : 100 Square Meters

Price : Negotiation

Payment Terms : L/C, T/T

Delivery Time : 25-45 days

Packaging Details : Pearl cotton, Foam cotton, Wooden box

Supply Ability : Monthly Productivity 30,000 m²

Materials : Aluminum Alloy

Type : Hidden Door/Wall

Hardware : Rotate Bearings,etc

Glass : Customized if needed

Color : Matt White, etc

Model : KPT 9

Contact Now

Luxury Villa - Aluminum Pivot Door - High Quality Alu - Pivot Wall - Environmental Integration


Advantage:

  • Adopt the unique indoor arc design, improve the three-dimensional sense of beauty, coordination, feel comfortable;
  • The insulation strip is neat to improve the insulation and insulation of the whole window;
  • Professional corner code connection reasonable injection process, no lack of glue will not be redundant, improve the corner strength, water tightness and air tightness;
  • Provide humane selection of Angle of collision group and field group Angle code;
  • The pressing line adopts the edge closing design and corner code connection technology to eliminate the pressing line splicing and blanking errors, simplify the process requirements and fast assembly;
  • Unique and reasonable design of water blocking rubber strip in the middle cavity, perfectly matching with the outlet, the drainage is smooth and not blocked;
  • Fully Customized

Structure and process characteristics:

  • Sealed insulation saves electricity:

    Aluminum alloy doors and Windows tight good, warm in winter, can reduce the consumption of heating,

    summer use of air conditioning equipment, air conditioning is not easy to drain;

    Good fire performance:

    The fireproof performance of the PVC model steel window of incombustibility thinks to the wood window of combustible is better, but compare with the aluminium alloy window of non-combustibility is bad;

    Lightning protection and anti-static strength:

    Aluminum alloy is a good conductor of electricity, take effective grounding measures, can be used as lightning protection facilities, and can prevent electrostatic phenomenon;

    Decorative:

    A variety of surface treatment methods can be used to obtain any desired color and effect to meet the needs of different users for color effect.

Luxury Villa Aluminum Pivot Doors , Pivoting Walls Environmental Integrated

Cabability Parameter

Standard Grade

GB/T7106 GB/T15227

Wind Load Resitance 4.5 ≤ p3 < 5.0 LV 8
Air Tightness q1 ≤ 0.5 LV 8
Water Tightness △P ≥ 700 LV 6
Thermal Insulation 3.0>k ≥ 2.5 LV 5
Sound Insulation 30 ≤ Rw+Cr <35 LV 3

Luxury Villa Aluminum Pivot Doors , Pivoting Walls Environmental Integrated

Name/Model:

Luxury Villa - Aluminum Pivot Door

- High Quality Alu - Pivot Wall - Environmental Integration

Profiles: 6063 - T5 high quality aluminium extrusion profiles
Glass Type: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
All glass type if you need
Color: Matt white;ultra silver;clear anodized;nature clean aluminium
All color of your choice
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
Matt White or other color
Hardware :
Worldwide Top brand
Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years
Security: Crimsafe mesh ; Grille available
Application: House; Building(office/hotel/apartment)

Luxury Villa Aluminum Pivot Doors , Pivoting Walls Environmental Integrated

Luxury Villa Aluminum Pivot Doors , Pivoting Walls Environmental Integrated

Luxury Villa Aluminum Pivot Doors , Pivoting Walls Environmental Integrated

Luxury Villa Aluminum Pivot Doors , Pivoting Walls Environmental Integrated

Luxury Villa Aluminum Pivot Doors , Pivoting Walls Environmental Integrated
