| Door Type | 70 series aluminum sliding window |
| Opening style | Sliding |
| Frame Material | Aluminum |

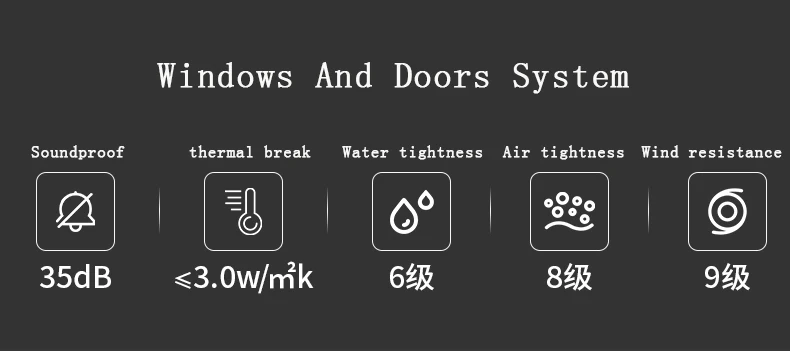

| Functions | Heat & Sound insulation |
| Profile | A. Aluminum alloy, 6063-T5, can be thermal break
B. Wall thickness: 1.2, 1.4, 1.6, 2.0mm, can be customized
C. Surface treatment: anodized, electrophoresis, powder coated, color
can be customized |
| Glass option | A. Single glass: 5,6,7,8,10,12,15,19mm Tempered Glass
B. Double glazing: 5+ 6/9/12 +5mm Tempered Glass
C. Laminated glass: 5+ 0.38/0.76/1.52PVB+5mm Tempered Glass
D. Tinted/Reflect glass/Tempered Glass
E: Customized |
| Hardware | A. Made in China
B. Made in Germany
C. Customized |
| Fly screen | A. Stainless steel security mesh
B. Aluminum security mesh
C. Fiberglass fly screen
D. Retractable & invisible fly screen |

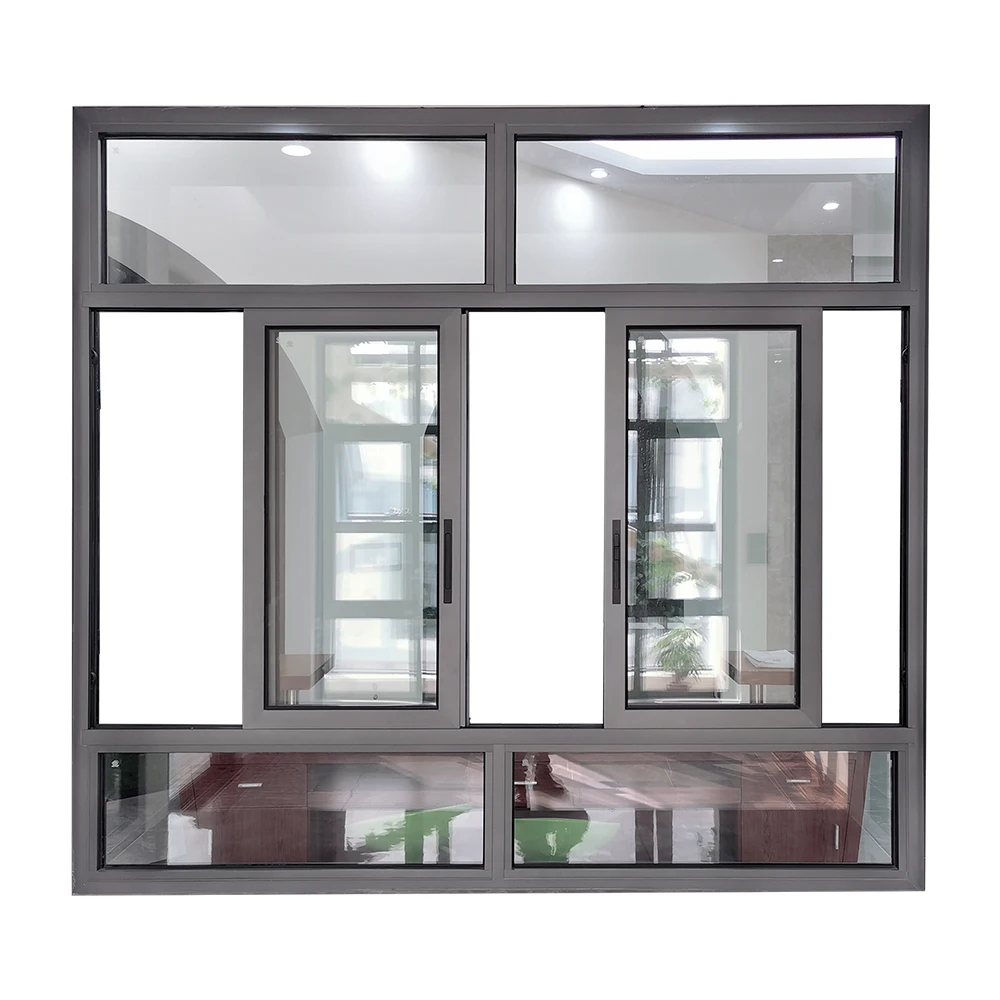

Aluminium sliding glass window
The sliding window not only has a large window width, large glass block, wide field of view, but also increases the indoor lighting, which effectively improves the brightness of the house; it does not occupy the extra space in the house regardless of the opening and closing state; the sliding window opens in one plane. It takes up less space and is convenient for installing screens.
Surface:
1. The principle of electrophoresis technology
The electrophoresis is basically the same as the traditional light and transparent electrophoresis. The anode electrophoresis is carried out under the action of direct current. With the action of the electric field, the coated particles with charge are moved to the coated workpiece, which precipitates the electrophoresis coating deposited on the surface of the aluminium profile, forming a layer of film. The difference lies in the different types of coatings and the slightly different devices.
The electrophoretic coating includes acrylic resin, melamine resin, pigments, solvents, neutralizing agents, additives and other ingredients. Through the application of thermal fixing in the viaduct layer in the particle, the shape of the micro-concave coating during the process of baking was basically unchanged in the baking process, and the appearance of the film was formed uniformly. The degree of extinction can be adjusted by the ratio of high gloss paint and low gloss paint.
For profile color, due to the transparency of coating, the color of the product depends on the electrolytic coloring. The color of the profile can also be added to color, white, ivory, green, red, ash, etc., by selecting the color aluminum profile required by adding color pulp. The surface quality is better than spray.
2. Excellent performance of products
high transparency and full measure, with special gloss and transparency, the coating has a high stereo effect, and the color of the substrate is obvious.
the high hardness, when the temperature of 180 ℃ baking 30 min, hardness can be up to 4 to 5 h.
good level of flow, strong paint film, and smooth film.
with strong binding force and penetration, the coating is all-pervasive, and the wet film and dry film have a strong binding force.
the performance is good, resistance to discoloration and corrosion when the baking temperature of 180 ℃ ~ 200 ℃ workpiece does not change color, lasting bright color products, corrosion effect is perfect.
the average of the electrophoresis is good, the paint film is evenly flat, and can reach 10-16 um in 90-200v, high efficiency, and low power consumption.
good impact resistance and artificial sweat resistance.
it can be used for the surface protection of aluminum, metal electroplating, precious metal accessories, lamps and high-end furniture.
it can be electrophoresis with various color slurry: titanium gold, general grey, real black and other colors. due to the superior screening rate of the matte electrophoresis coating, the extrusion mold pattern on the surface of the aluminum material has a certain degree of masking effect.And for the color difference of the dying process, it has a certain degree of compensation effect.
Please tell us the information below, and we will give the best suggestion to you !
1. Where you intend to use the aluminium windows?
2. If you have the estrusion drawing, send us and we develop the correspondence mold.
3. Which color you want or tell us the architectural style you like.
4. Purchase quantity. It will convenient us to give you the best price.
